Refrigerant cools the area of entry to remove moisture. The system uses thermal mass to cycle on and off based on the load conditions. Cycling systems are more energy efficient as they conserve energy during low airflow. Contact us for a complete list of specs, features, and benefits. Submit Request

Non-Cycling Air Dryers

Refrigerant cools the area of entry to remove moisture. The system continuously circulates, adjusting as needed to the load conditions. There is a consistent dew point and continual operation. Contact us for a complete list of specs, features, and benefits. Submit Request

When you turn to Air Compressor Sales for an air dryer for your operation, you can expect expert advice and guidance during the selection process to ensure the equipment you receive will match your facility or production needs. Once selected, you can also trust us to complete the installation, checking for accuracy and efficiency at every step.

It’s critical to avoid downtime at your facility. But still, disaster can strike at any moment. If your system fails or a component malfunctions, forcing you to halt production, Air Compressor Sales provides emergency response so that you can get back to regular operation sooner rather than later.

Rebuilding Capabilities

While we sell, install, and maintain Gardner Denver air dryers, our team can maintain and rebuild nearly any brand of air dryer or filter your facility may have.

Air Dryers and Filtration

settings

padding settings

Protect Your Equipment. Eliminate Contamination.

row settings

Compressed Air Dryers and Air Filtration

Bypass equipment damage and air contamination with high-quality air dryers and filtration systems from Air Compressor Sales. Our compressed air dryers and filters work to tackle moisture and particles in the compressed air process so that moisture-sensitive machinery will function properly for years to come, and your equipment will remain water- and particle-free.

Get a Custom Quote

row settings

padding settings module settings

Refrigerated Air Dryers, Desiccant Air Dryers, and Air Filters

Air dryers and air filters are crucial aspects of the compressed air process. While filters remove particles that could compromise production processes, dryers remove moisture that could compromise both the production process and the compressor components.

Refrigerated Air Dryers

Desiccant Air Dryers

Air Filters

row settings

padding settings module settings

Our Refrigerated Air Dryers

We offer a range of Gardner Denver air dryers, including the XGNC series, XGCY series, X series, RGD series, RPC series, and RHT series.

row settings

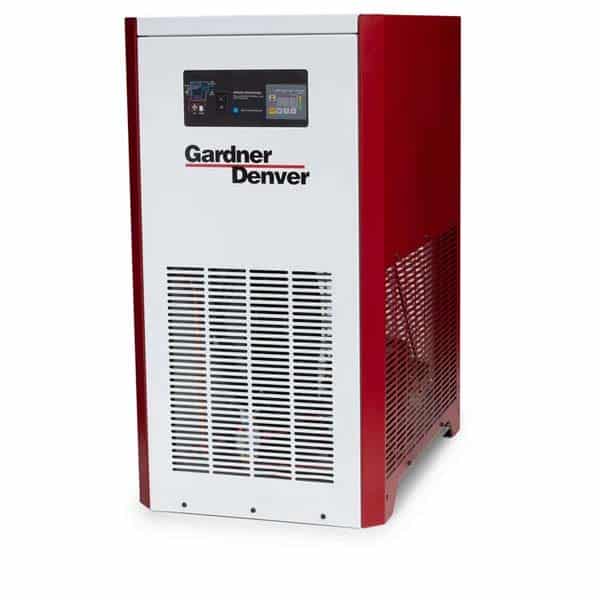

XGNC Series – Non-Cycling
- Airflow: 7-1200 SCFM
- Enclosure rating: NEMA Standard 1
- Max. inlet air temp: 140° (60°C) (XGNC7-150), 120°F (49°C) XGNC200-1200)
- Max. operating pressure: 300 PSIG (model XCNC200-1200), 203 PSIG (XCNC7-100)
- Rated flow capacity: Conditions for rating dryers are in accordance with ISO 7183
- Pressure drip: +/- 0.5 PSIG (models XGNC200-1200)
Contact us for a complete list of specs, features, and benefits.
Submit Request for a XGNC Series – Non-Cycling quote

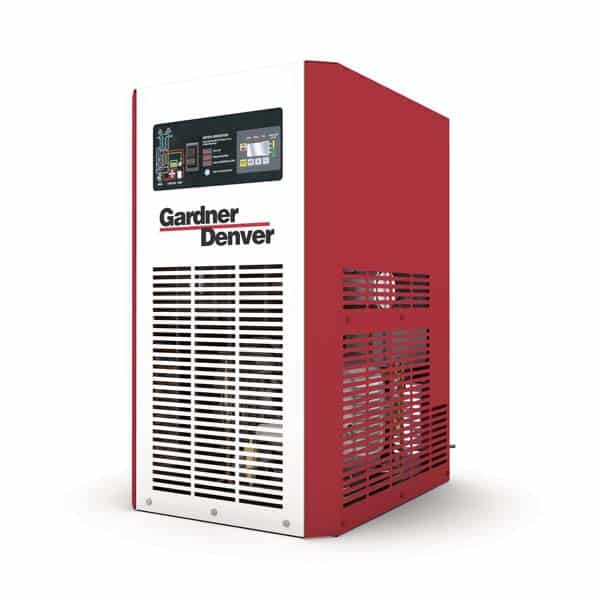

XGCY Series – Cycling
- Airflow: 10-1200 SCFM
- Enclosure rating: NEMA Standard 1
- Max. inlet air temp: 120°F (49°C)
- Max. operating pressure: 300 PSIG (XGCY200-800 STD Solenoid Drain), 220 PSIG (XGCY200-800 No Air Loss Drain), 220 PSIG (XGCY1000-1200)
- Rated flow capacity: Conditions for rating dryers are in accordance with ISO 7183
Contact us for a complete list of specs, features, and benefits.
Submit Request for a XGCY Series – Cycling quote

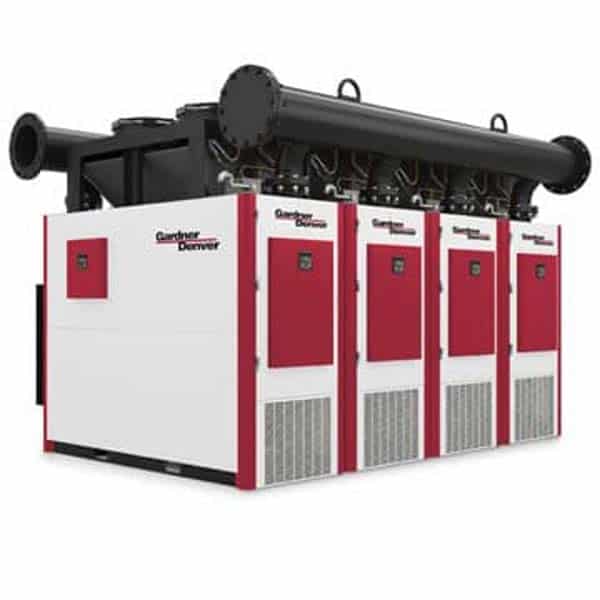

X Series
- Large Refrigerated Dryer
- Max. 200 PSIG/min 50 PSIG compressed air inlet pressure
- R410A refrigeration system
- Dual-element, GP-grade inlet filter with DP switch
- Standard isolation values
- Standard condensate drains
Contact us for a complete list of specs, features, and benefits.
Submit Request for a X Series quote

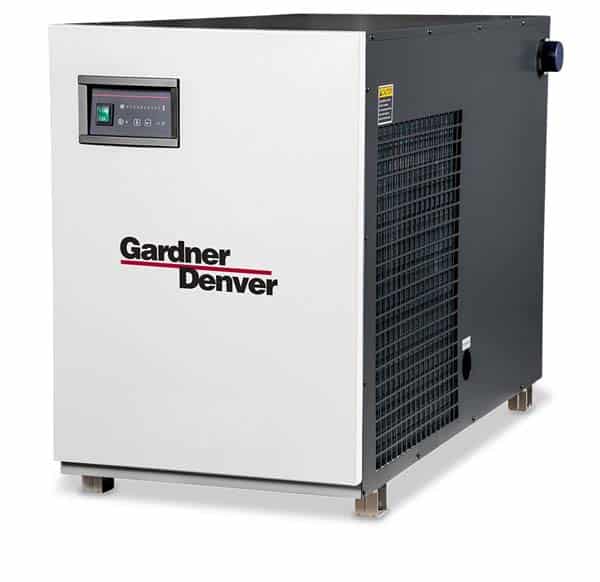

RGD Series – Refrigerated Air Dryer (Non-Cycling)
- Airflow: 10-1200 SCFM
- Air Quality: ISO 8573-1
- Pressure Dew Point: Class 4 to 5
- For RGD 15-50 SCFM: Smooth bore, copper tube-on-tube heat exchangers, centrifugal separator, static condenser design, electronic drain valve.
- For RGD 75-1200 SCFM: Stainless steel cross-flow heat exchangers, stainless steel inlet/outlet connections, timed electric condensate drain, integral demister/separator, compact design.
Contact us for a complete list of specs, features, and benefits.
Submit Request for a RGD Series – Refrigerated Air Dryer (Non-Cycling) quote
RPC Series – Refrigerated Air Dryer
- Airflow: 75-2000 SCFM
- Max. operating pressure: 232 PSIG
- Max. inlet temperature: 122°F
- Filtration is external to the dryer and offered as a bundle package
- No-air-loss drain on all models
- Two levels of controllers specified by model
Contact us for a complete list of specs, features, and benefits.
Submit Request for a RPC Series – Refrigerated Air Dryer quote
RHT Series – High Inlet Temps
- Max. inlet air temperature: 180°F (82°C)
- Designed to work directly with reciprocating air compressors
- Designed to maintain a 50°F pressure dew point
Contact us for a complete list of specs, features, and benefits.
Submit Request for a RHT Series – High Inlet Temps quote

row settings

padding settings module settings

About Refrigerated Air Dryers

Refrigerated air dryers work to remove water vapor from the air by condensing the vapors for easy collection and removal. A refrigerated air dryer is the more common type of system in compressed air applications, as the dryer treats the incoming air, allowing for a continuous flow of dry air. Systems can be cycling or non-cycling.

settings

padding settings module settings

Benefits of a Refrigerated Air Dryer

Removes particles, water, and oil vapors from the compressed air system
Low operation costs
Low maintenance costs
Highly reliable
Effective at extending the life of your compressor

row settings

padding settings module settings

Our Desiccant Air Dryers

row settings

XGMLA Series
- Capacity: 3-177 SCFM
- Max. Pressure: 203 PSIG
- High-efficiency filtration and desiccant bed absorption
- Low noise levels
- -40°F and -100°F PDP models
- Optional energy management system for larger units
Contact us for a complete list of specs, features, and benefits.
Submit Request for a XGMLA Series quote
XGHBA Series – Heated Blower
- Capacity: 150-8000 SCFM
- Max. pressure: 150 PSIG (higher pressures available)
- Enclosure rating: NEMA 4-Standard
- Low-profile design
- Low-mounted filtration
- 7″ color touchscreen controller
- Tower pressure gauges
- Standard packaged filtration
Contact us for a complete list of specs, features, and benefits.
Submit Request for a XGHBA Series – Heated Blower quote
XGHL Series – Heatless
- Capacity: 90-5000 SCFM
- Max. pressure: 150 PSIG (higher pressures available)
- Enclosure rating: NEMA 4-Standard
- Customizable dew points to -100°F
- Digital controller
- Low-mounted filtration
- High-strength activated desiccant
- Tower pressure gauges
- Standard packaged filtration
Contact us for a complete list of specs, features, and benefits.
Submit Request for a XGHL Series – Heatless quote
XGHPA Series – Heated Purge
- Capacity: 150-8000 SCFM
- Max. pressure: 150 PSIG (higher pressures available)
- Enclosure rating: NEMA 4-Standard
- Low-profile design
- Low-mounted filtration
- 7″ color touchscreen controller
- Tower pressure gauges
- Standard packaged filtration
Contact us for a complete list of specs, features, and benefits.
Submit Request for a XGHPA Series – Heated Purge quote
DGH Series – Heatless
- Four standard ISO quality class levels of pressure dew points
- Highly customizable
- Coalescing filters optional
Contact us for a complete list of specs, features, and benefits.
Submit Request for a DGH Series – Heatless quote

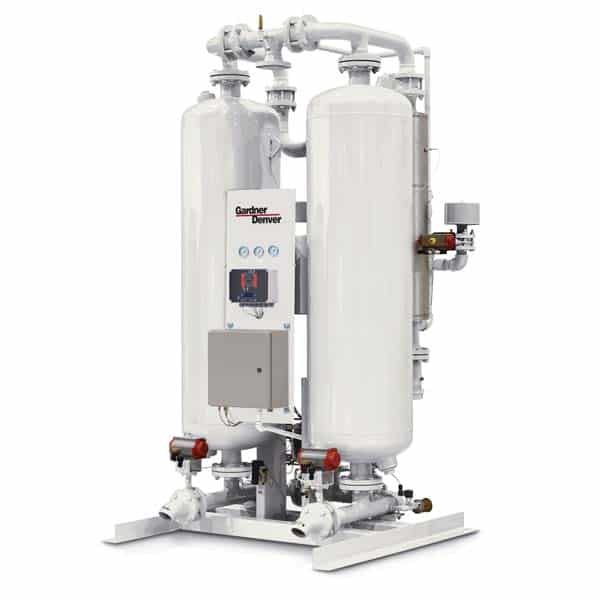

DHP Series – Externally Heated
- ISO 8573-1 Class 2 dew points
- ISO 8573-1 Class 1 available with the appropriate FIL filtration
Contact us for a complete list of specs, features, and benefits.
Submit Request for a DHP Series – Externally Heated quote
DPB Series – Blower Purge
- Reliable -40°F (-40°C) pressure dew point
- Significant energy savings
Contact us for a complete list of specs, features, and benefits.
Submit Request for a DPB Series – Blower Purge quote

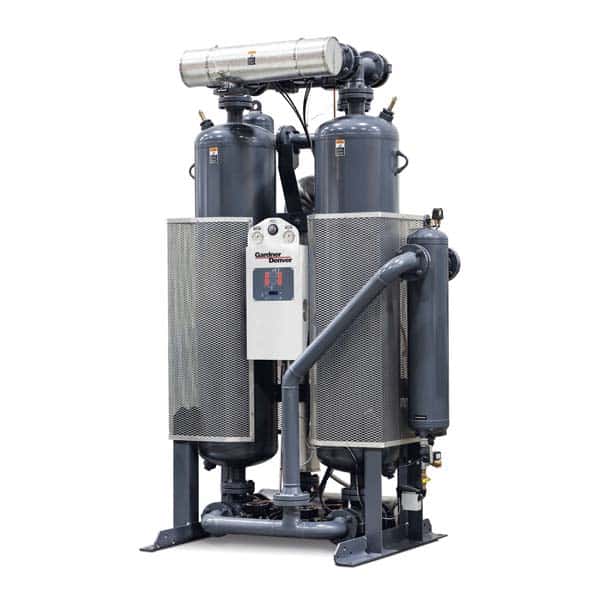

DHC Series – Heat of Compression
- Utilizes thermal energy produced during the compressed air process to regenerate the offline desiccant bed
- Ideal for use with oil-free compressors
- Consumes <50 watts
Contact us for a complete list of specs, features, and benefits.
Submit Request for a DHC Series – Heat of Compression quote
GCHM Series – Dual Tower
- Unique two-tower design
- Hygroscopic desiccant
- Starts and stops with a compressor or point-of-use equipment to eliminate purge loss when off
Contact us for a complete list of specs, features, and benefits.
Submit Request for a GCHM Series – Dual Tower quote
DST Series – Single Tower
- Compact, in-line design
- Easy installation
- Suited for point-of-use applications
- Modular housings with optional oil-removal pre-filter
Contact us for a complete list of specs, features, and benefits.
Submit Request for a DST Series – Single Tower quote
DBS – Breathing Air Purifier
- Capacity: 15-940 SCFM
- 6-stage filtration process to meet OSHA, CGA, ANSI, and CSA breathing air standards
- Heatless regenerative desiccant dryer with a fixed 10-minute dryer cycle
- Delivers consistent ISO 8573-1:2010 Class 2 outlet pressure dew point quality air.
- Converts compressed air into breathable air for your plant or facility
Contact us for a complete list of specs, features, and benefits.
Submit Request for a DBS – Breathing Air Purifier quote

row settings

padding settings module settings

About Desiccant Air Dryers

Rather than cooling the air to condense the moisture, desiccant air dryers work to absorb the moisture in the compressed air process. Air is sent through a vessel and taken to a pair of drying agent towers, where desiccant material absorbs the moisture and is then dried out.

Desiccant air dryers are best suited for applications that require ultra-low dew points, such as those using moisture-sensitive equipment or requiring completely moisture-free air.

row settings

Benefits of a Desiccant Air Dryer

Lower dew points
Freeze protection
Better system protection
Better product quality
Consistent performance for more reliable operations

row settings

padding settings module settings

Our Air Filters

row settings

FIL Series
- Filtration range: 20 – 21,250 SCFM
- Max. working pressure: 300 PSIG
- Max. Inlet temp: 150°F
- Seven filtration grades to provide ISO 8573-1 standard air quality
Contact us for a complete list of specs, features, and benefits.
Submit Request for a FIL Series quote
XG Series
- Filtration range: 18-13,200 CFM
- Mist eliminators from 125-10,000 CFM
- All-aluminum cast body
- Proprietary corrosion coating on inside and outside of housing
- Industrial-grade brass float drain
- Deep-pleated filter media
Contact us for a complete list of specs, features, and benefits.
Submit Request for a XG Series quote
FSG Series
- Canister housing to eliminate mess with every changeout
- Optional differential pressure gauge or indicator available
- Stainless steel support screens to hold microfiber media and maintain element integrity
- Ability to size filter for specific applications
Contact us for a complete list of specs, features, and benefits.
Submit Request for a FSG Series quote
FHP Series
- Filtration range: 480-28,380 SCFM
- Max. operating pressure: 900 PSIG
- 5 grades of filtration available (3 micron – 0.01 micron, 0.008)
- Ideal for food and pharmaceutical applications
- Ideal for high-pressure applications
Contact us for a complete list of specs, features, and benefits.
Submit Request for a FHP Series quote
XGME Series – Mist Eliminator
- Airflow: 125-10,000 SCFM
- Max. working pressure: 150 PSIG
- Max. operating temp: 150°F
- Standard long-life mist eliminator element
- Optional automatic condensate drain
Contact us for a complete list of specs, features, and benefits.
Submit Request for a XGME Series – Mist Eliminator quote
MMD Series
- Max. working pressure: 200 PSIG
- Low-capacity applications
- Flexible pressure dew points between 40°F and -40°F
- No external power required
- Ideal for portable applications
Contact us for a complete list of specs, features, and benefits.
Submit Request for a MMD Series quote

row settings

padding settings module settings

About Air Filters

Before air reaches the drying stage, it undergoes pre-filtration to remove larger particles, dirt, and debris from the air, making the drying process easier, cleaner, and more efficient. Plus, pre-filtration helps protect the air dryer’s components from corrosion or damage too quickly.

row settings

Depending on the air drying system or your operation’s requirements, your dryer could feature any of the following types of filtration:

Particulate filters: These filters typically use a membrane to trap and collect larger particles from the air before it reaches the drying stage.
Oil coalescing filters: These filters incorporate small droplets of liquid into the air to merge with the much smaller vapors already present in the air. These droplets are then collected, along with any dirt particles.
Activated carbon filters: These filters are best for collecting gaseous contaminants from the air using the activated carbon present in the filter.

row settings

padding settings module settings

Warranty Protection and the ACS Guarantee

Every product we sell is backed by the manufacturer’s warranties and the ACS guarantee. If your system or equipment isn’t working correctly after installation, we’ll work to find the cause of the issue, find the right solutions, and get your equipment up and running properly.

Gardner Denver Warranty Information

row settings

padding settings module settings

Want More Information About Our Air Dryers and Filtration Systems? Call Air Compressor Sales at 1-800-342-6016
