Portable Power. Built for Any Jobsite.

row settings

Portable Diesel Air Compressors

When you need compressed air for the jobsite or as a backup to your rotary screw system, you need a diesel air compressor from Air Compressor Sales. Our solutions from ACS and Bobcat® equip you with the flexibility and capability to take your solutions on the road or to any operation that requires a portable air compressor.

Get a Custom Quote

row settings
padding settings module settings

Our Portable Air Compressors

Air Compressor Sales is a trusted source for diesel-powered, single-stage, portable rotary screw air compressors from Bobcat®.

row settings
  • A white and gray Bobcat portable air compressor with two red wheels, a black towing hitch, and a support stand in front.

    PA185 (Doosan D18)

    • Flow Rate: 5.2 m3/min (185 CFM)
    • Pressure*: 6.9 BARG (100 PSIG)
    • Fuel tank Capacity: 34.5 gal. (130.6 L)
    • Rated Speed: 2,600 RPM
    • Hours of Operation**: 12.6 hr.
    • Weight***: 2,359 lbs. (1,070 kg)
    • Dimensions (inches)****: 137.4 (L) x 68.5 (W) x 67.5 (H)

    Contact us for a complete spec. list.

    Submit Request

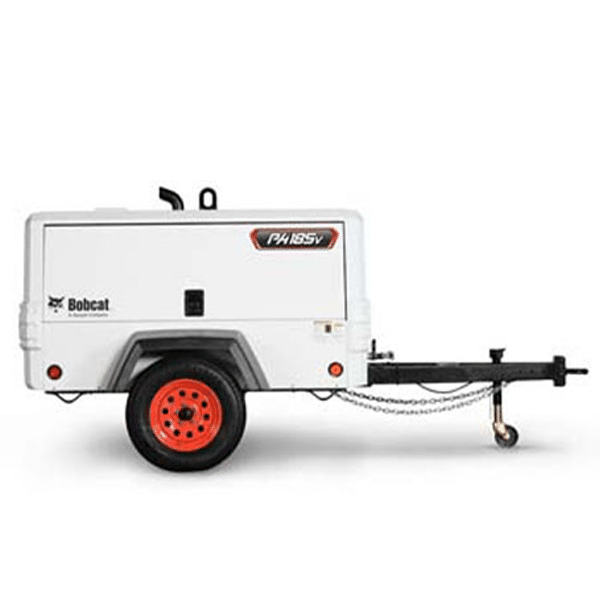

  • A white portable air compressor trailer with a black frame, red wheel rim, and tow bar. The unit is labeled Bobcat and PA185V on the side.

    PA185V (Doosan D24)

    • Flow Rate: 5.2 m3/min (185 CFM)
    • Pressure*: 6.9 BARG (100 PSIG)
    • Fuel tank Capacity: 34.5 gal. (130.6 L)
    • Rated Speed: 2,550 RPM
    • Hours of Operation**: 8.7 hr.
    • Weight***: 2,477 lbs. (1,124 kg)
    • Dimensions (inches)****: 137.4 (L) x 68.5 (W) x 67.5 (H)

    Contact us for a complete spec. list.

    Submit Request

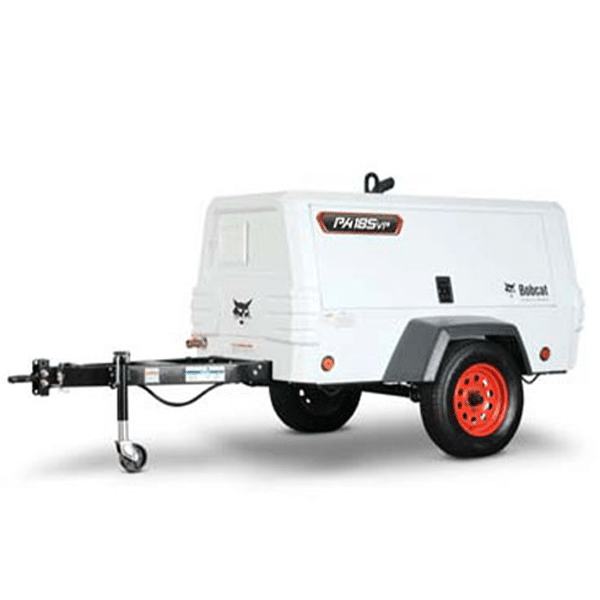

  • White Bobcat P4 185 portable air compressor with red wheels, black tow bar, and compact design on a plain white background.

    PA185VP (Doosan D24)

    • Flow Rate: 5.2 m3/min (185 CFM)
    • Pressure*: 8.6 BARG (125 PSIG)
    • Fuel tank Capacity: 34.5 gal. (130.6 L)
    • Rated Speed: 2,550 RPM
    • Hours of Operation**: 11.0 hr.
    • Weight***: 2,594 lbs. (1,070 kg)
    • Dimensions (inches)****: 142.9 (L) x 68.5 (W) x 67.5 (H)

    Contact us for a complete spec. list.

    Submit Request

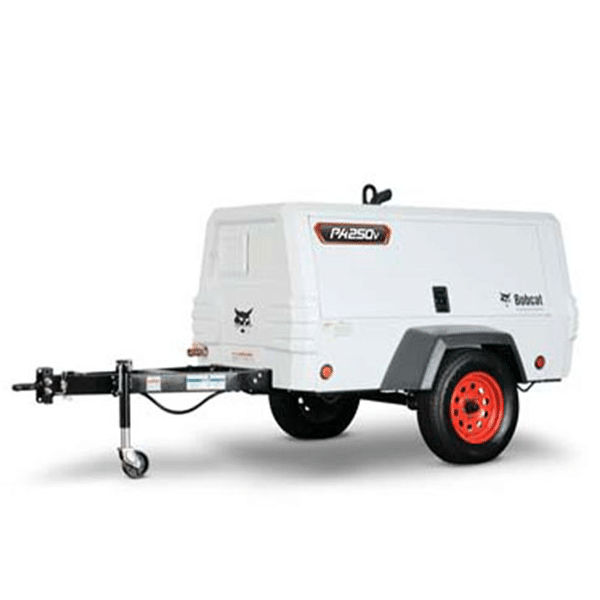

  • A white portable air compressor with red wheels and a tow bar, labeled Bobcat PA250v, designed for transport and outdoor use.

    PA250V (Doosan D24)

    • Flow Rate: 7.0 m3/min (250 CFM)
    • Pressure*: 6.9 BARG (100 PSIG)
    • Fuel tank Capacity: 34.5 gal. (130.6 L)
    • Rated Speed: 2,600 RPM
    • Hours of Operation**: 12.2 hr.
    • Weight***: 2,594 lbs. (1,124 kg)
    • Dimensions (inches)****: 142.9 (L) x 68.5 (W) x 67.7 (H)

    Contact us for a complete spec. list.

    Submit Request

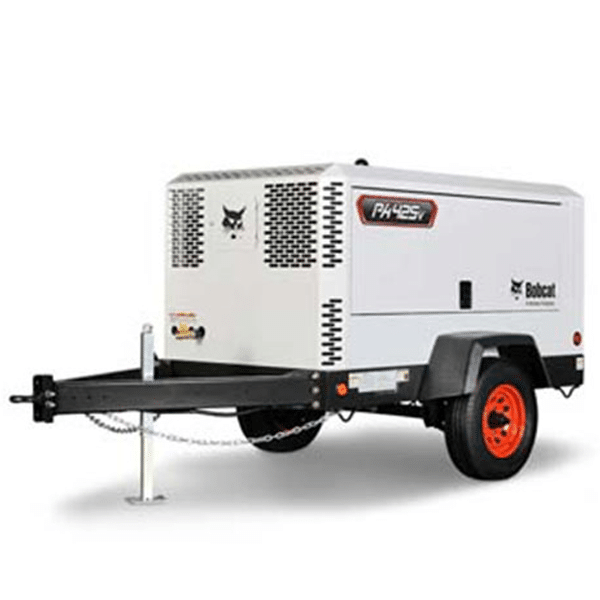

  • A white Bobcat PH425i portable air compressor sits on a black towable trailer with red wheels and an extended front support leg.

    PA425V (Cummins F3.8L)

    • Flow Rate (low/high): 12.0/10.6 m3/min (425/375 CFM)
    • Pressure (low/high)*: 6.9/10.3 BARG (100/150 PSIG)
    • Fuel tank Capacity: 60 gal. (227 L)
    • Rated Speed (low/high): 2,300/2,075 RPM
    • Hours of Operation (low/high)**: 10/9 hr.
    • Weight***: 4,776 lbs. (2,166 kg)
    • Dimensions (inches)****: 154.2 (L) x 78.2 (W) x 73.3 (H)

    Contact us for a complete spec. list.

    Submit Request

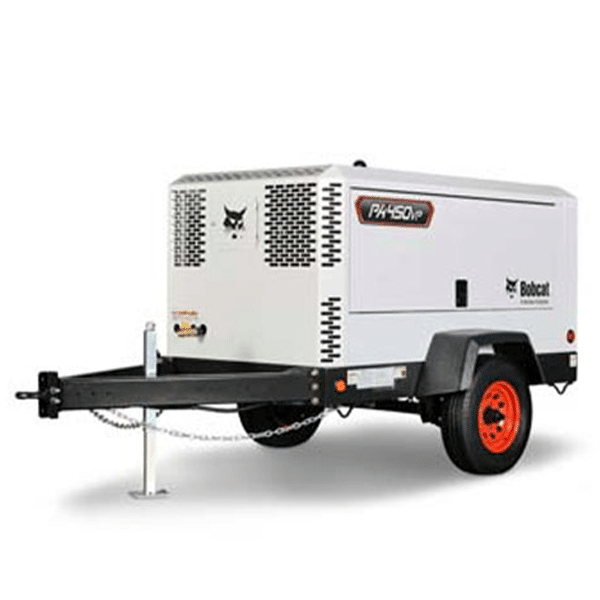

  • A white Bobcat portable air compressor with red wheels and black trim on a trailer hitch with support stand and safety chains.

    PA450VP (Cummins F3.8L)

    • Flow Rate (low/high): 12.7/11.3 m3/min (450/400 CFM)
    • Pressure (low/high)*: 10.3/13.8 BARG (150/200 PSIG)
    • Fuel tank Capacity: 60 gal. (227 L)
    • Rated Speed (low/high): 2,500/2,250 RPM
    • Hours of Operation (low/high)**: 8 hr.
    • Weight***: 4,776 lbs. (2,166 kg)
    • Dimensions (inches)****: 154.2 (L) x 78.2 (W) x 73.3 (H)

    Contact us for a complete spec. list.

    Submit Request

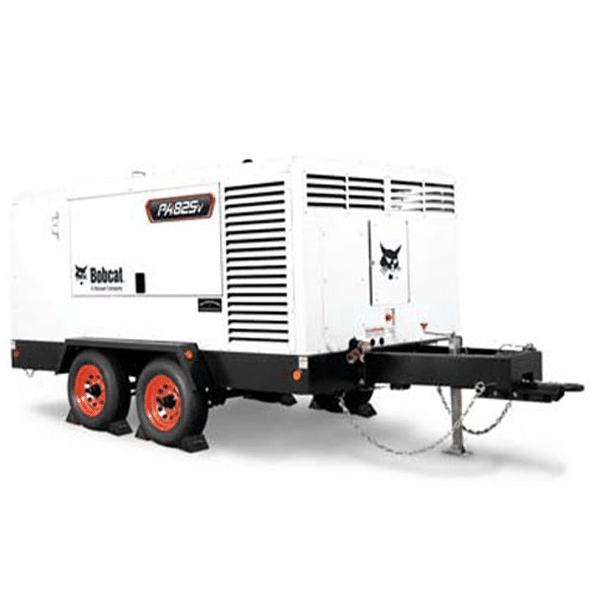

  • A white Bobcat PA 825V portable air compressor on a dual-axle trailer with red wheels and black fenders, shown on white.

    PA825V (Cummins QSB6.7)

    • Flow Rate (low/high): 23.4/21.2 m3/min (825/750 CFM)
    • Pressure (low/high)*: 8.6/10.3 BARG (125/150 PSIG)
    • Fuel tank Capacity: 100 gal. (379 L)
    • Rated Speed (low/high): 2,100/1,935 RPM
    • Hours of Operation (low/high)**: 9.1/9.3 hr.
    • Weight***: 9,330 lbs. (4,230 kg)
    • Dimensions (inches)****: 203.3 (L) x 90.2 (W) x 88.5 (H)

    Contact us for a complete spec. list.

    Submit Request

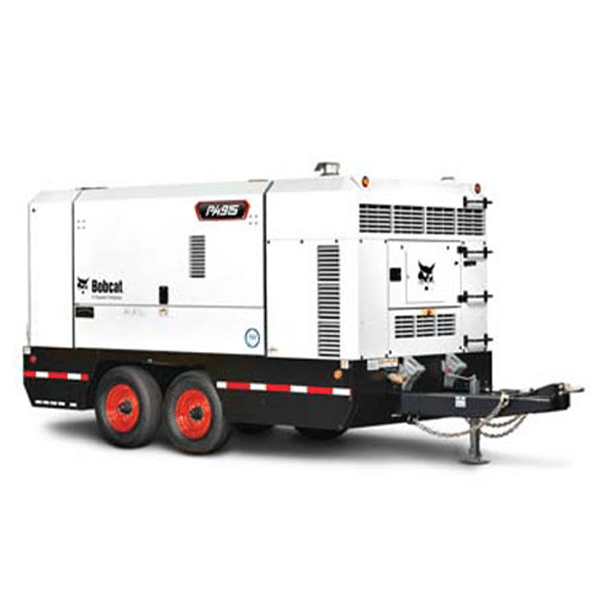

  • Large white mobile generator on dual-axle trailer with red wheels, black hitch, Bobcat branding, and model number for industrial use.

    PA915 (Cummins B6.7)

    • Flow Rate: 25.9 m3/min (915 CFM)
    • Pressure*: 10.3 BARG (150 PSIG)
    • Fuel tank Capacity: 128 gal. (485 L)
    • Rated Speed: 1800 RPM
    • Hours of Operation**: 9.2 hr.
    • Weight***: 10,692 lbs. (4,849 kg)
    • Dimensions (inches)****: 171.0 (L) x 83.0 (W) x 95.0 (H)

    Contact us for a complete spec. list.

    Submit Request
  • A large white mobile generator on a dual-axle trailer with red wheels, vents, control panels, hitch, and Bobcat branding.

    PA1600VP Cummins (Cummins QSX15)

    • Flow Rate (low/high): 45.3/39.6 m3/min (1,600/1,400 CFM)
    • Pressure (low/high)*: 10.3/13.8 BARG (150/200 PSIG)
    • Fuel tank Capacity: 200 gal. (750 L)
    • Rated Speed (low/high): 1,850/1,600 RPM
    • Hours of Operation (low/high)**: 8.7/9.0 hr.
    • Weight***: 21,300 lbs. (9,660 kg)
    • Dimensions (inches)****: 235.0 (L) x 90.1 (W) x 102.0 (H)

    Contact us for a complete spec. list.

    Submit Request
  • A large white mobile generator on a dual-axle trailer with red wheels, vents, control panels, hitch, and Bobcat branding.

    PA1600VP CAT (Caterpillar C13B)

    • Flow Rate (low/high): 45.3/39.6 m3/min (1,600/1,400 CFM)
    • Pressure (low/high)*: 10.3/13.8 BARG (150/200 PSIG)
    • Fuel tank Capacity: 200 gal. (750 L)
    • Rated Speed (low/high): 1,850/1,600 RPM
    • Hours of Operation (low/high)**: 8.7/9.0 hr.
    • Weight***: 20,750 lbs. (9,410 kg)
    • Dimensions (inches)****: 235.0 (L) x 90.1 (W) x 102.0 (H)

    Contact us for a complete spec. list.

    Submit Request

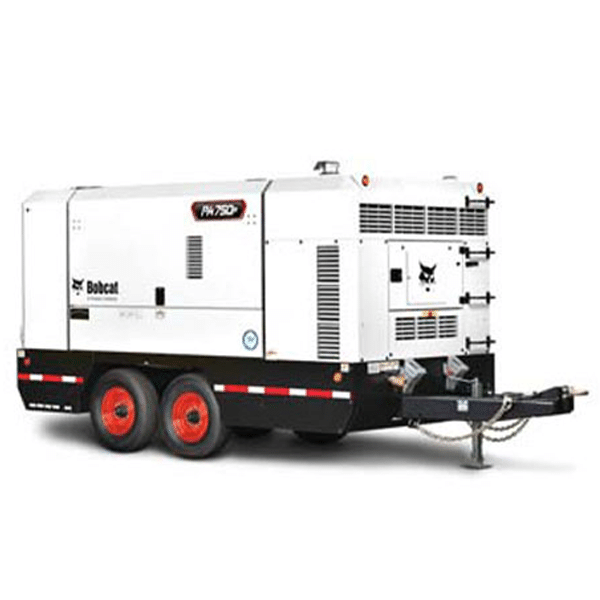

  • A large white towable industrial air compressor with two wheels and a hitch, branded Bobcat and labeled PA 750 on the side.

    PA750P (Cummins L9)

    • Flow Rate: 21.2 m3/min (750 CFM)
    • Pressure*: 24.1 BARG (350 PSIG)
    • Fuel tank Capacity: 128.1 gal. (485 L)
    • DEF tank capacity: 15 gal (57 L)
    • Rated Speed: 1,800 RPM
    • Weight***: 12,015 lbs. (5,450 kg)
    • Dimensions (inches)****: 226.3 (L) x 82.6 (W) x 101.3 (H)

    Contact us for a complete spec. list.

    Submit Request

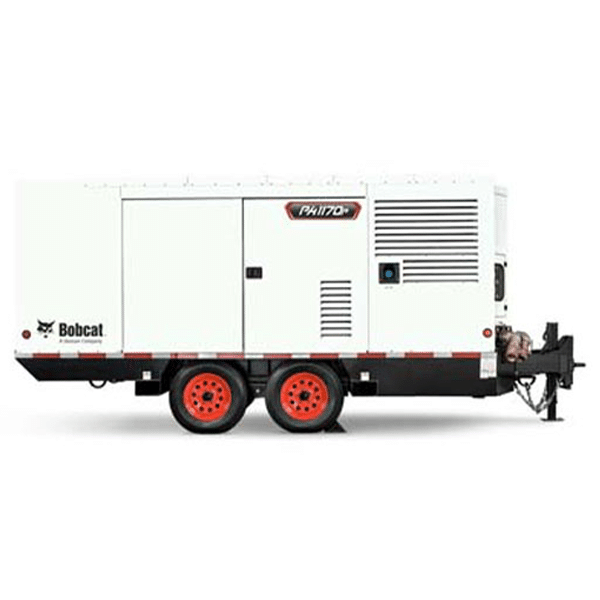

  • Large white Bobcat portable air compressor with two red wheels on a black trailer hitch, side vents, doors, and the Bobcat logo.

    PA1170P (Caterpillar C13B)

    • Flow Rate: 33.1 m3/min (1,170 CFM)
    • Pressure*: 25.1 BARG (365 PSIG)
    • Fuel tank Capacity: 200 gal. (750 L)
    • DEF tank capacity: 25.4 gal (96 L)
    • Rated Speed: 1,825 RPM
    • Weight***: 20,150 lbs. (9,140 kg)
    • Dimensions (inches)****: 235 (L) x 90 (W) x 102.0 (H)

    Contact us for a complete spec. list.

    Submit Request
row settings
padding settings module settings

*Rated operating pressure
**Hours of operation at full load
***Working weight (with fuel)
****Dimensions with running gear

row settings
padding settings module settings

Additional Diesel Portable Generators From Bobcat®:

row settings
  • PG25
  • PG40
  • PG50
  • PG70
  • PG100
  • PG125
  • PG150
  • PG190
  • PG240
  • PG325
  • PG400
  • PG570
row settings
padding settings module settings

Warranty Protection and the ACS Guarantee

Every product we sell is backed by manufacturer warranties and the ACS guarantee. If your system doesn’t work correctly after installation, we’ll work to find the cause of the issue, find the right solutions, and get your equipment up and running properly.

Bobcat® Warranty Information

row settings
padding settings module settings

Want More Information About Our Diesel Compressors, Solutions, and Capabilities? Call Air Compressor Sales at 1-800-342-6016

padding settings settings decorative background
module settings

Reliable, Flexible, Portable Air Compressors

Easy to use and powered by diesel—not electricity—our portable air compressors offer the flexibility to serve any operation, even though they are most often used for road construction, bridge work, sandblasting, and other on-the-go applications. These systems are built to withstand the elements and tackle the job, regardless of location, weather conditions, power availability, and almost any other operating challenge.

Diesel systems also help minimize downtime, serving as a dependable backup should your stationary system fail, go down for maintenance, or suffer from a power failure.

row settings
  • Portability: Take Your Compressor Anywhere
  • Reliability: Depend on Your Compressor to Get the Job Done
  • Simplicity: Bypass Any Hassle With Your Compressor
row settings

How Do Diesel Air Compressors Work?

Diesel rotary screw air compressors work the same as a regular stationary rotary screw compressor. The main difference is that they are powered by fuel (diesel) rather than electricity.

During the process, air enters the chamber and becomes pressurized and compressed through rotating impellers. The system will maintain a constant pressure level so that there is dependable air delivery for the job at hand.

Depending on the model, a diesel air compressor can be trailer-mounted or mounted directly to the vehicle.

row settings
padding settings module settings

Portable Diesel Compressors From Air Compressor Sales

Air Compressor Sales is your source for portable air compressors in Georgia. We not only provide you with trusted equipment, but we’re also here for all your compressed air needs, from preventive maintenance to one-off services or 24/7 emergency repairs.

settings

settings
padding settings module settings

Chat With a Specialist About Our Portable Air Compressors Today: 1-800-342-6016

padding settings settings decorative background
module settings

Portable Diesel Air Compressors for Your Industry

Air Compressor Sales provides portable air compressor solutions to plants, facilities, or operations in any industry, including those in:

row settings
row settings
padding settings module settings

Serving All of Georgia

Air Compressor Sales is your source for air solutions in Georgia. With branches in Macon, GA, and Atlanta, GA, we have the capabilities to sell, install, maintain, and service your systems and equipment, no matter your location.
